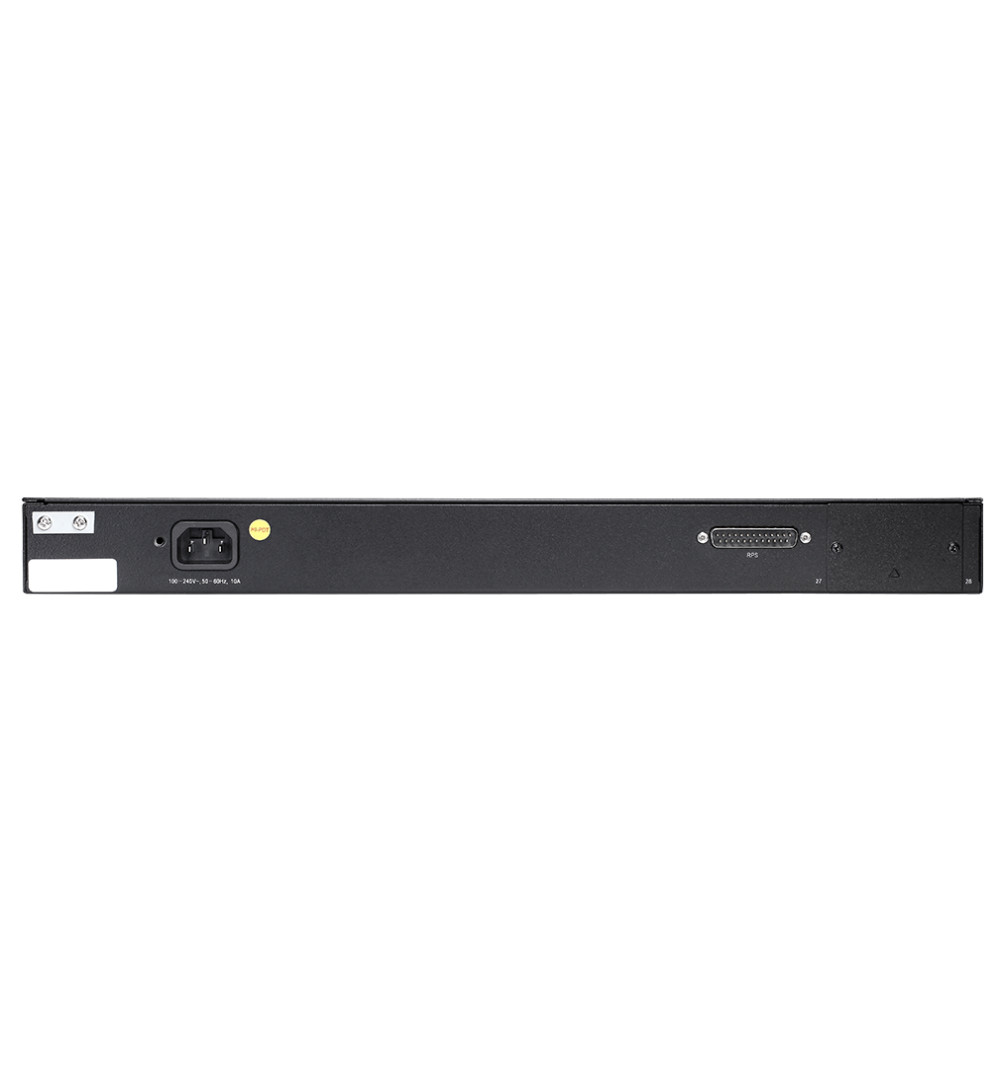

Edgecore ECS4620-28P L3 Gigabit Ethernet Stackable Switch

Interfész:
24 x 1GbE RJ-45 Ports (PoE)
2 x 10G SFP+ Uplink Ports
1 x 10G SFP+ Expansion Module Slots
1 x Console Port

L2:
Auto-negotiation for port speed and duplex mode
Flow Control:
IEEE 802.3x for full-duplex mode
Back-pressure for half-duplex mode
Spanning Tree Protocol:
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
BPDU Guard
BPDU filtering
Root Guard
Loopback detection
Spanning Tree Fast Forwarding
Auto Edge-Port
BPDU Forward
Storm Control (broadcast/multicast/unknown unicast)
VLANs:
Supports 4K IEEE 802.1Q VLANs
Port-based
GVRP/GARP
VLAN Translation
IEEE 802.1v Protocol-based VLANs
MAC-based VLANs
IP subnet-based VLAN
Private VLAN (Community)
Traffic Segmentation (port isolated)
Guest VLAN
Voice VLAN
VLAN trunking
Link Aggregation:
Static trunk
IEEE 802.3ad Link Aggregation Control Protocol
Trunk groups: 16
Trunk links: 2~8 ports for Gigabit Ethernet ports
2~4 ports for 10 Gigabit Ethernet ports
Load Balance: SA+DA, SA, DA, SIP+DIP, SIP, DIP
IGMP Snooping:
IGMP v1/v2/v3 snooping
IGMP Filtering
IGMP Throttling
IGMP Immediate Leave
IGMP Querier v1/v2
IGMP SNP Proxy (v1/v2/v3)
IGMP Authentication
Source Filtering Mode Data Forwarding
Non-STP loopback Detection
L2 Protocol Tunneling (CDP,PVST,STP,LLDP)
MVR (Multicast VLAN Registration)
Supports Q-in-Q
Supports select Q-in-Q
UDLD
8032 v2 (ERPS)
Supports jumbo frames up to 10KB
Supports Digital Diagnostic Monitoring (DDM)
Packet filtering of L2 control CDP/PVST
Cable diagnostics
HW Stacking

L3 IPv4:
Static unicast routes
Equal cost multipath routing (ECMP)
RIP v1/v2
OSPF
BGP4+
PIM-DM
IGMP v1/v2
IGMP v1/v2 proxy
IGMP v3
IGMP v3 proxy
PIM-SM
VRRP
Proxy ARP
UDP Helper

L3 IPv6:
PIM-DM6
PIM-SM6
IPv6 static route
OSPFv3
MLD v1/v2
