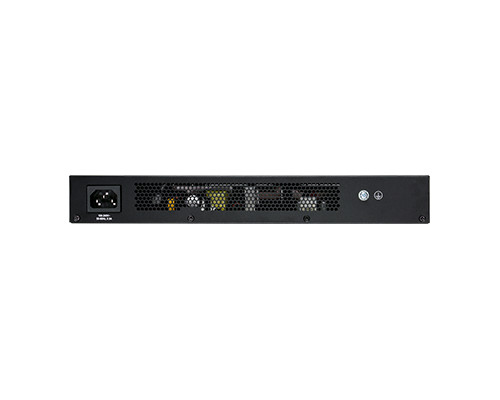

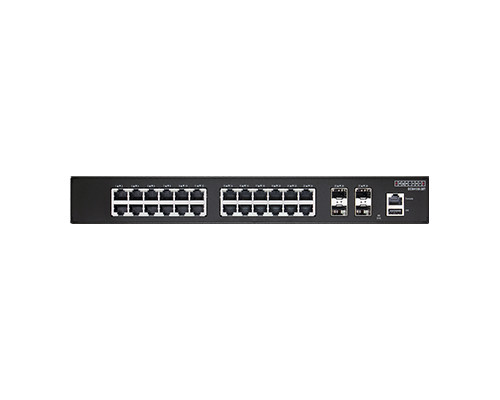

Edgecore ECS4130-28T Compact Size, L2+/L3 Lite Gigabit Ethernet Switch

Interfész:
24 x RJ-45 10/100/1000 Ports
4 x 10G SFP+ Uplink Ports
1 x Console Port
1 x USB Port

L2:
1000BASE-T copper interfaces
Auto-negotiation for port speed and duplex mode
Auto MDI/MDI-X
Dual-speed (1G and 10G) fiber interfaces
SFP+ Ports Support:
IEEE 802.3ae changeable (10GBASE-SR/LR)
IEEE 802.3z (1000BASE-SX/LX) transceivers, and 10G DAC/AOC


Digital Diagnostic Monitoring (DDM) on 10G SFP+ port
Flow Control:
IEEE 802.3x for full-duplex mode
Back-Pressure for half-duplex mode


Jumbo frames 10KB
Broadcast/Multicast/ Unknown Unicast Storm Control
Spanning Tree Protocol:
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), 64 instances
BPDU Guard
BPDU filtering
Root Guard
BPDU transparent
Loopback detection


Non-Spanning Tree Loopback detection
ITU-T G.8032 Ethernet Ring Protection:
Sub 50 msec convergence
Revertive operation mode
Multiple-ring network


VLANs:
Supports 4K VLAN
Port-based VLAN
EEE 802.1Q VLAN
GVRP
IEEE 802.1v Protocol-based VLAN
IP Subnet-based VLAN
MAC-based VLAN
Traffic Segmentation

L2 Virtual Private VLAN:
Q-in-Q
L2 Protocol tunneling (xSTP, CDP, VTP and PVST+, LLDP)
CDP/PVST+ Filtering
Selective Q-in-Q

Link Aggregation:
Static Trunk
IEEE 802.3ad Link Aggregation Control Protocol
Trunk Groups: 16, up to 8 GE/4 10G ports per group
Load Balancing: SA+DA, SA, DA, SIP+DIP, SIP, DIP

IGMP Snooping:
IGMP v1/v2/v3 snooping
IGMP proxy reporting
IGMP Filtering
IGMP Throttling
IGMP Immediate Leave
IGMP Querier

MVR (Multicast VLAN Registration): Supports 5 multicast VLANs
Port mirroring
Remote port mirror (RSPAN)
