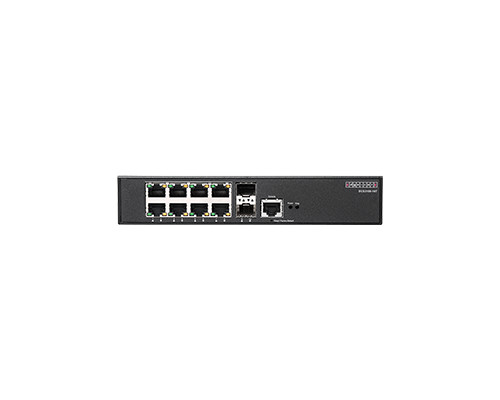

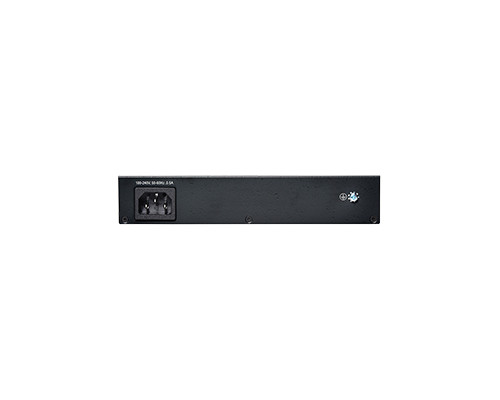

Edgecore ECS2100-10T L2+/L3 Lite Managed Access Switch

Name: Edgecore ECS2100-10T L2+/L3 Lite Managed Access Switch
SKU: ECS2100-10T

Cikkszám:

ECS2100-10T

Az ECS2100-10T egy L2/L2+ Gigabit Ethernet Managed Switch, amely 8 x GE portot + 2 GE SFP portot támogat 1 RJ45 konzolporttal és ventilátor nélküli kialakítással.

Részletek

Részletek

Interfész:
8 x RJ-45 10/100/1000 Ports
2 x 1G SFP Uplink Ports
1 x Console Port

L2:
RJ-45 port support:
10BASE-T (IEEE 802.3)
100BASE-TX (IEEE 802.3u)
1000BASE-T (IEEE 802.3ab)

SFP port support:
IEEE 802.3u (100BASE-FX) transceivers
IEEE 802.3z (1000BASE-SX/LX/LHX/ZX) transceivers

Digital Diagnostic Monitoring (DDM) on 1G SFP port
Flow Control :
IEEE 802.3x for full-duplex mode
Back-pressure for half-duplex mode

Spanning Tree Protocol:
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP, 64 instances)
Loopback Detection
BDPU Filter/Guard
BDPU Forward
Root Guard
VLANs:
Supports 4K IEEE 802.1Q VLANs
Port-Based/MAC-Based/IEEE802.1v (Protocol-Based VLAN)
Guest VLAN
Auto Voice VLAN

Link Aggregation:
Static Trunk
IEEE 802.3ad(802.1ax) Link Aggregation Control Protocol (LACP)

IGMP Snooping:
IGMP v1/v2/v3 snooping
IGMP Filtering/Throttling
IGMP Queries
IGMP Immediate leave
MLD Snooping

LLDP/LLDP-MED
Green-Saving: IEEE 802.3az/Cable Length/No Link Power-Saving
Jumbo Frame: 10 K
Cable Diagnostic
Q-in-Q
mDNS
IP Clustering (Software Stacking)

L3:
Static Routing
RIP
