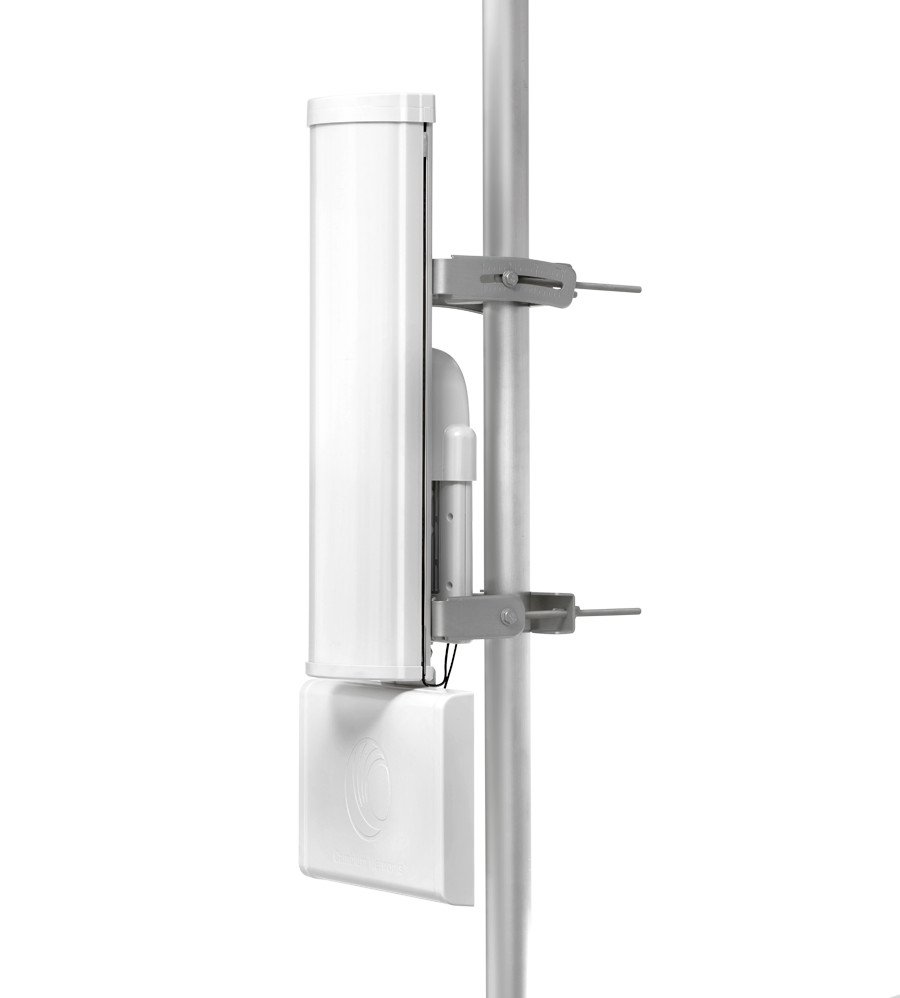

Cambium ePMP 2000 Fixed Wireless Access Point System

Spektrum:
Channel Spacing Configurable on 5 MHz increments
Frequency Range 5150 - 5970 MHz (exact frequencies as allowed by local regulations)
Channel Width 5 I 10 I 20 I 40 MHz

Interfész:
Physical Layer 2x2 MIMO/OFDM
Ethernet Interfaced 100/lOOOBaseT, rate auto negotiated, 802.3at compliant
VLAN 802.lQ with 802.lp priority

Teljesítmény:
Subscribers per Sector Up to 120; Lite version limited to 10
GPS Synchronization Yes, via internal GPS or CMM4 with 56 V and 5 pin to 7 pin cross over cable adapter
Quality of Service Three-level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast, and Station Priority

Fizikai jellemzők:
Environmental IP55
Weight 0.79 kg (1.5lbs) without brackets
Dimensions (Dia x Depth) 22.2 x 12.4 x 4.5 cm (8.75 x 4.9 x 1.75 in) without brackets
