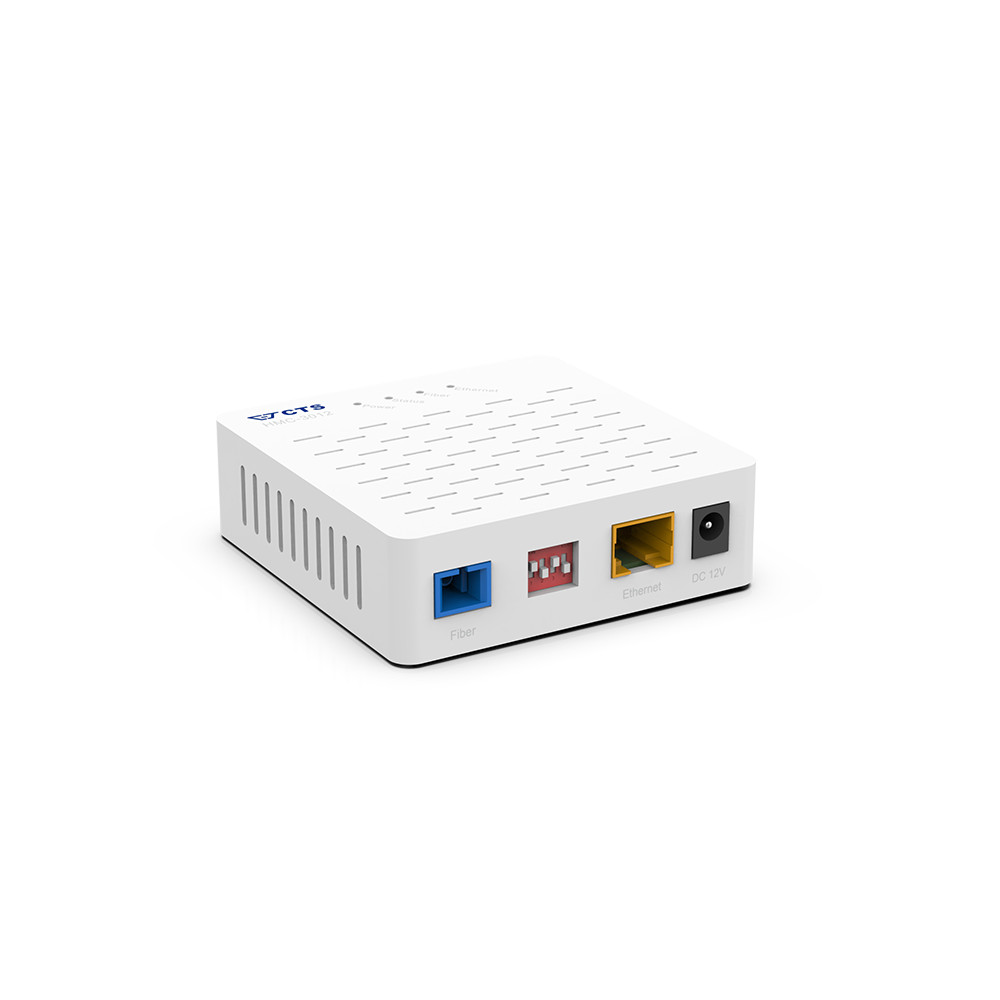

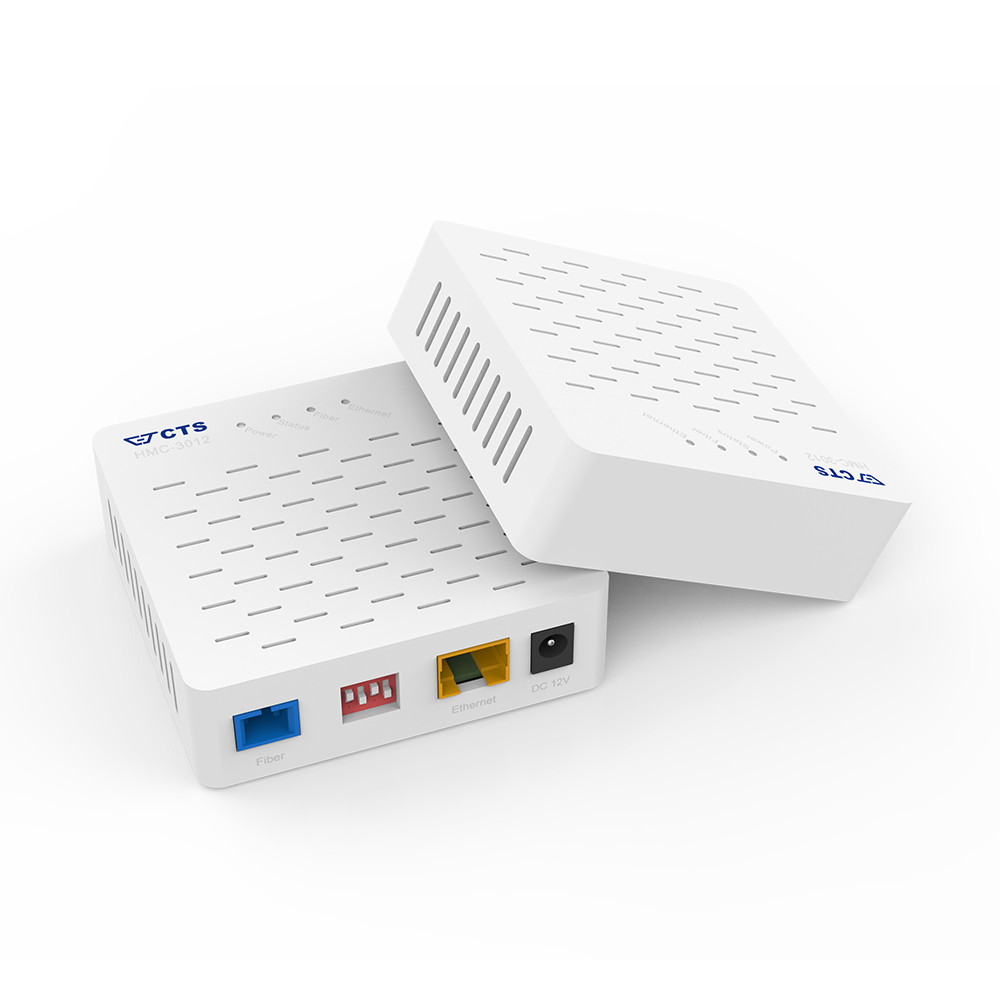

CTS HMC-3012 Gigabit Ethernet Fiber Media Converter 1-Port 10/100/1000Base-T RJ-45 + 1-Port 100/1000Base-X WDM SC Gigabit Ethernet Fiber Media Converter. Home Size Media Converter

Name: CTS HMC-3012 Gigabit Ethernet Fiber Media Converter 1-Port 10/100/1000Base-T RJ-45 + 1-Port 100/1000Base-X WDM SC Gigabit Ethernet Fiber Media Converter. Home Size Media Converter
SKU: HMC-3012

Cikkszám:

HMC-3012

A CTS HMC-3012 médiakonverter a hagyományos csavart érpárú RJ-45 kábelt WDM SC egymódusú szálas adathordozóvá alakítja, így az FTTX pont-pont megoldások alkalmazásakor akár 10 km-re is megnöveli az átviteli távolságot.

Részletek

Részletek

Interface
TP Port : 1×10/100/1000Base-T RJ-45
F/O Port : 1×10/100/1000Base-X
LED
Power
Status
Fiber
Ethernet
Power Requirement
Power Adaptor
– AC Input: 100VAC ~ 240VAC
– Frequency Range: 50 ~ 60Hz
– DC Output: 12VDC, 1A
Power Consumption: 2.04W Max.
Hardware
Non-Blocking Switching Fabric: 4Gbps
Store and Forward Switching Mechanism
Auto-Crossover for MDI/MDIX for TP Port
Auto-Negotiation for TP Port
MAC Address Table: 2K
9K Bytes Jumbo Frame
DIP Switch:
– Pin 1: F/O Speed Auto-Sensing
– Pin 2: F/O 1G Mode
– Pin 3: Ethernet Follow Fiber Link Status
– Pin 4: Ethernet Follow Fiber Link Speed
Environmental Condition
Operation: 0˚C ~ 45˚C
Storage: -20˚C ~ 60˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension & Weight
Size: 88 x 88 x 27mm (W x D x H)
Weight: 105g
