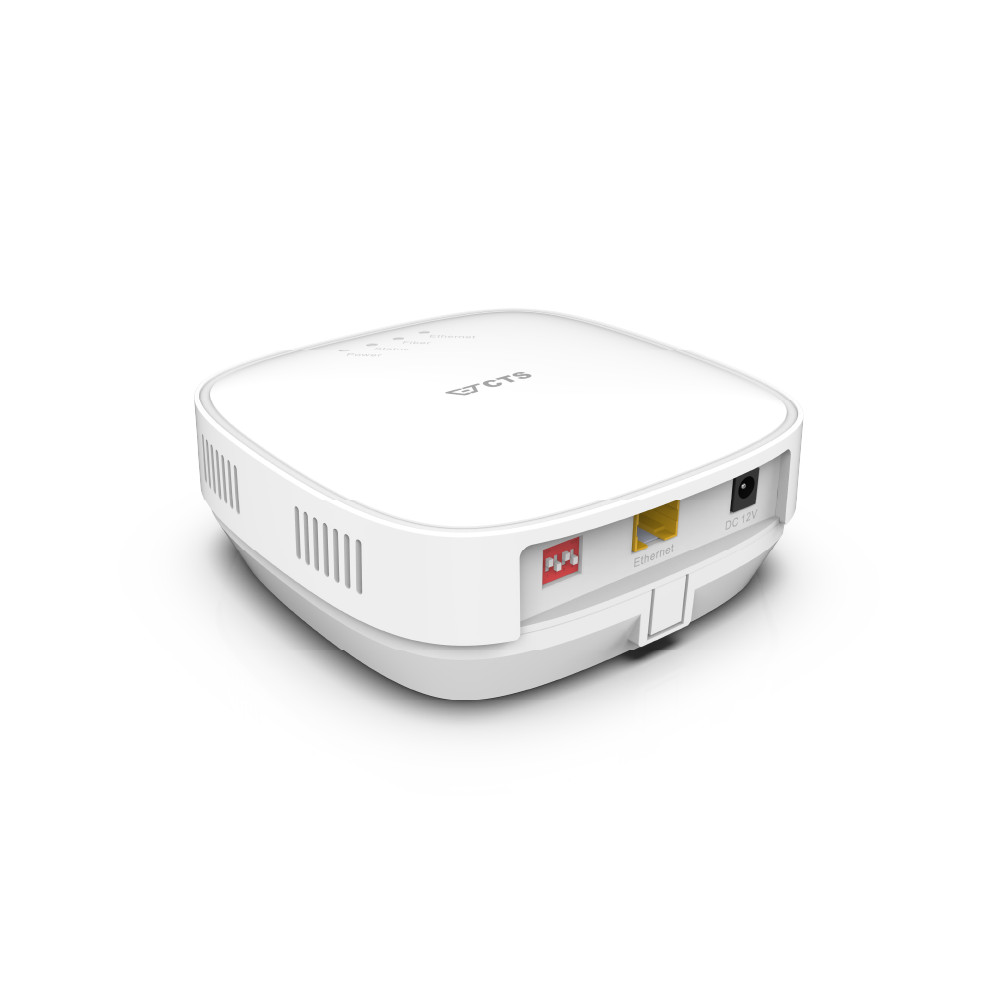

CTS FTC-3012 Gigabit Fiber Termination Media Converter Equipped with a Cable Tray Unit OPEX-saving and consistent performance. Home Size Media Converter

Interface
F/O Port (Type):
1 x 100/1000Mbps (TX:1310/RX:1550nm with BOSA SC/UPC connector)
TP Port (Type):
1 x 10/100/1000Mbps (RJ-45)
LED
Power
Status
Fiber
Ethernet
Power Requirement
AC to DC Power Adaptor
– Input: 100 ~ 240VAC, 50/60Hz
– Output: 12VDC, 1A
Power Consumption (Max.): 2.04W
Hardware
Non-Blocking Switching Fabric: 2Gbps
Store and Forward Switching Mechanism
Auto-Negotiation in TP Ports
Auto-Crossover for MDI/MDIX in TP Ports
Jumbo Frame: 9K Bytes
DIP Switch (for FTC-3012-DS model only)
– Pin 1: F/O Speed Auto-Sensing
– Pin 2: F/O 1G Force/Auto Mode
– Pin 3: Ethernet Follow Fiber Link -State
– Pin 4: Ethernet Follow Fiber Link Speed
Environmental Condition
Operation: 0˚C ~ 45˚C
Storage Temperature: -20˚C ~ 60˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension & Weight
Overall Size: 150 x 150 x 53mm (W x D x H)
(cable tray included in height measurement)
Active Unit: 150 x 150 x 43.3mm (W x D x H)
Cable Tray: 145 x 145 x 22.5mm (W x D x H)
Weight: 340g
